Slay the JIT: From Hotpatches to Symbolic Couture in Miasm

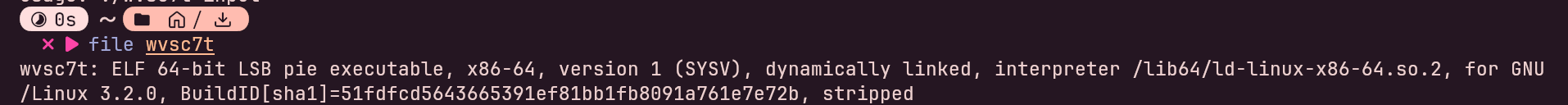

← back to blogRunning file on the binary shows a standard ELF executable:
Nothing unusual here

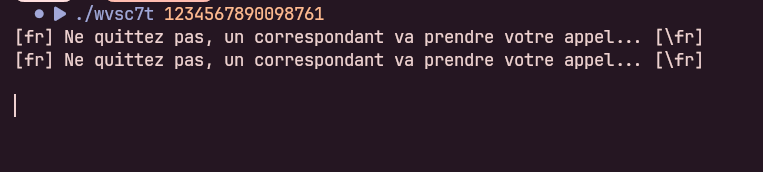

When executed, the binary asks for user input. Supplying anything incorrect leads to an immediate failure response, with no visible comparison or transformation in plaintext:

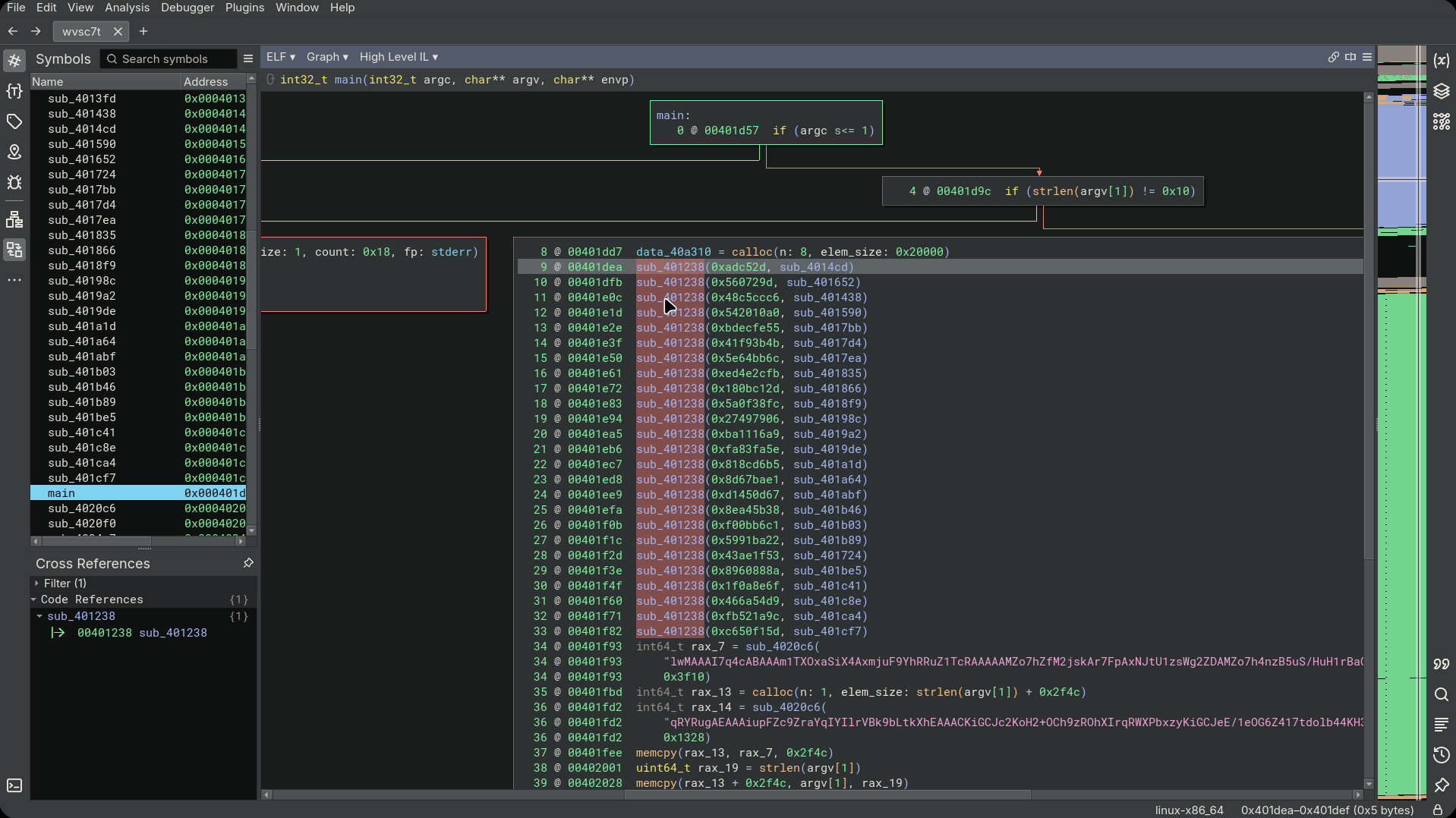

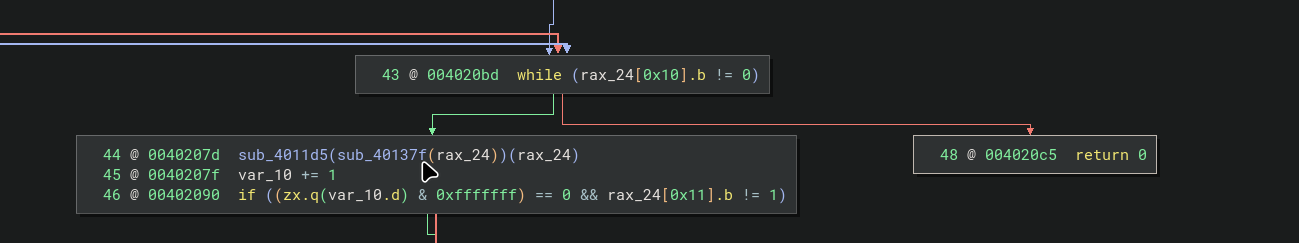

Opening the binary in Binary Ninja reveals that the validation logic is not normal control flow. Instead, it looks like a nested VM / emulator, where execution is handled through multiple small functions acting like opcode handlers:
Rather than direct comparisons, input seems to be processed through this interpreter.

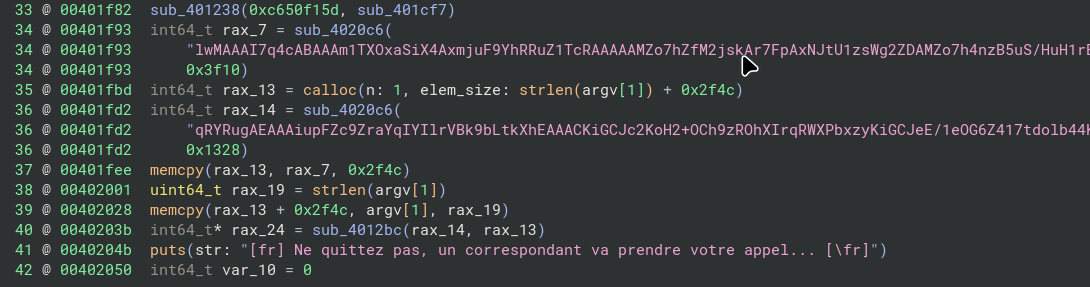

Below the opcode-handling logic are several hardcoded byte arrays that resemble Base64-encoded data:
These are likely VM data or encrypted constants consumed by the interpreter rather than decoded directly in native code.
The registers are 25 in count so we need to figure out the opcode for the instructions that the emulator will process.

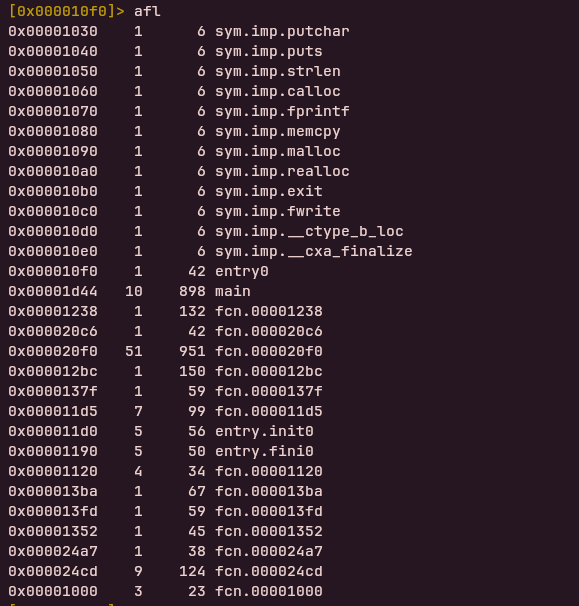

Ill use radare 2 for finding what each of the instrucions mean ;
Before the virtual machine executes any bytecode, it initializes an opcode dispatch table. This is done through a helper function (fcn.00001238), which is repeatedly called during VM setup.
In my best attempts this would be like
entry = calloc(1, sizeof(opcode_entry));
entry->opcode = opcode;
entry->handler = handler;
bucket = opcode_table[hash(opcode)];
entry->next = bucket;
opcode_table[hash(opcode)] = entry;
It seems like it is indeed the dispatcher for the architecture
After allocating the opcode table, the program registers every VM instruction by pairing:
an encoded opcode value (32-bit constant in edi) ,a handler function (function pointer in rsi)
So i’ll move onto the next function here which is
[0x00001d44]> s 0x000014cd
[0x000014cd]> pdf
ERROR: Cannot find function at 0x000014cd
[0x000014cd]> af
[0x000014cd]> pdf
; DATA XREF from main @ 0x1dde(r)
┌ 195: fcn.000014cd (int64_t arg1);
│ `- args(rdi) vars(3:sp[0xc..0x20])
│ 0x000014cd 55 push rbp
│ 0x000014ce 4889e5 mov rbp, rsp
│ 0x000014d1 48897de8 mov qword [var_18h], rdi ; arg1
│ 0x000014d5 488b45e8 mov rax, qword [var_18h]
│ 0x000014d9 488b10 mov rdx, qword [rax]
│ 0x000014dc 488b45e8 mov rax, qword [var_18h]
│ 0x000014e0 8b4038 mov eax, dword [rax + 0x38]
│ 0x000014e3 4898 cdqe
│ 0x000014e5 48c1e002 shl rax, 2
│ 0x000014e9 4801d0 add rax, rdx
│ 0x000014ec 8b00 mov eax, dword [rax]
│ 0x000014ee 8945fc mov dword [var_4h], eax
│ 0x000014f1 488b45e8 mov rax, qword [var_18h]
│ 0x000014f5 8b4038 mov eax, dword [rax + 0x38]
│ 0x000014f8 8d50ff lea edx, [rax - 1]
│ 0x000014fb 488b45e8 mov rax, qword [var_18h]
│ 0x000014ff 895038 mov dword [rax + 0x38], edx
│ 0x00001502 488b45e8 mov rax, qword [var_18h]
│ 0x00001506 488b10 mov rdx, qword [rax]
│ 0x00001509 488b45e8 mov rax, qword [var_18h]
│ 0x0000150d 8b4038 mov eax, dword [rax + 0x38]
│ 0x00001510 4898 cdqe
│ 0x00001512 48c1e002 shl rax, 2
│ 0x00001516 4801d0 add rax, rdx
│ 0x00001519 8b00 mov eax, dword [rax]
│ 0x0000151b 8945f8 mov dword [var_8h], eax
│ 0x0000151e 488b45e8 mov rax, qword [var_18h]
│ 0x00001522 8b4038 mov eax, dword [rax + 0x38]
│ 0x00001525 8d50ff lea edx, [rax - 1]
│ 0x00001528 488b45e8 mov rax, qword [var_18h]
│ 0x0000152c 895038 mov dword [rax + 0x38], edx
│ 0x0000152f 488b45e8 mov rax, qword [var_18h]
│ 0x00001533 8b4038 mov eax, dword [rax + 0x38]
│ 0x00001536 8d5001 lea edx, [rax + 1]
│ 0x00001539 488b45e8 mov rax, qword [var_18h]
│ 0x0000153d 895038 mov dword [rax + 0x38], edx
│ 0x00001540 8b55fc mov edx, dword [var_4h]
│ 0x00001543 8b45f8 mov eax, dword [var_8h]
│ 0x00001546 8d0c02 lea ecx, [rdx + rax]
│ 0x00001549 488b45e8 mov rax, qword [var_18h]
│ 0x0000154d 488b10 mov rdx, qword [rax]
│ 0x00001550 488b45e8 mov rax, qword [var_18h]
│ 0x00001554 8b4038 mov eax, dword [rax + 0x38]
│ 0x00001557 4898 cdqe
│ 0x00001559 48c1e002 shl rax, 2
│ 0x0000155d 488d3402 lea rsi, [rdx + rax]
│ 0x00001561 4863d1 movsxd rdx, ecx
│ 0x00001564 4889d0 mov rax, rdx
│ 0x00001567 48c1e01e shl rax, 0x1e
│ 0x0000156b 4801d0 add rax, rdx
│ 0x0000156e 48c1e820 shr rax, 0x20
│ 0x00001572 89c2 mov edx, eax
│ 0x00001574 c1fa1d sar edx, 0x1d
│ 0x00001577 89c8 mov eax, ecx
│ 0x00001579 c1f81f sar eax, 0x1f
│ 0x0000157c 29c2 sub edx, eax
│ 0x0000157e 89d0 mov eax, edx
│ 0x00001580 89c2 mov edx, eax
│ 0x00001582 c1e21f shl edx, 0x1f
│ 0x00001585 29c2 sub edx, eax
│ 0x00001587 89c8 mov eax, ecx
│ 0x00001589 29d0 sub eax, edx
│ 0x0000158b 8906 mov dword [rsi], eax
│ 0x0000158d 90 nop
│ 0x0000158e 5d pop rbp
└ 0x0000158f c3 retThis opcode handler implements the VM’s ADD instruction. It operates on the VM stack by popping two 32-bit values, decrementing the stack pointer accordingly. The two values are added together, and the resulting sum is reduced using a modulo operation with 0x7fffffff to constrain it within a fixed range.

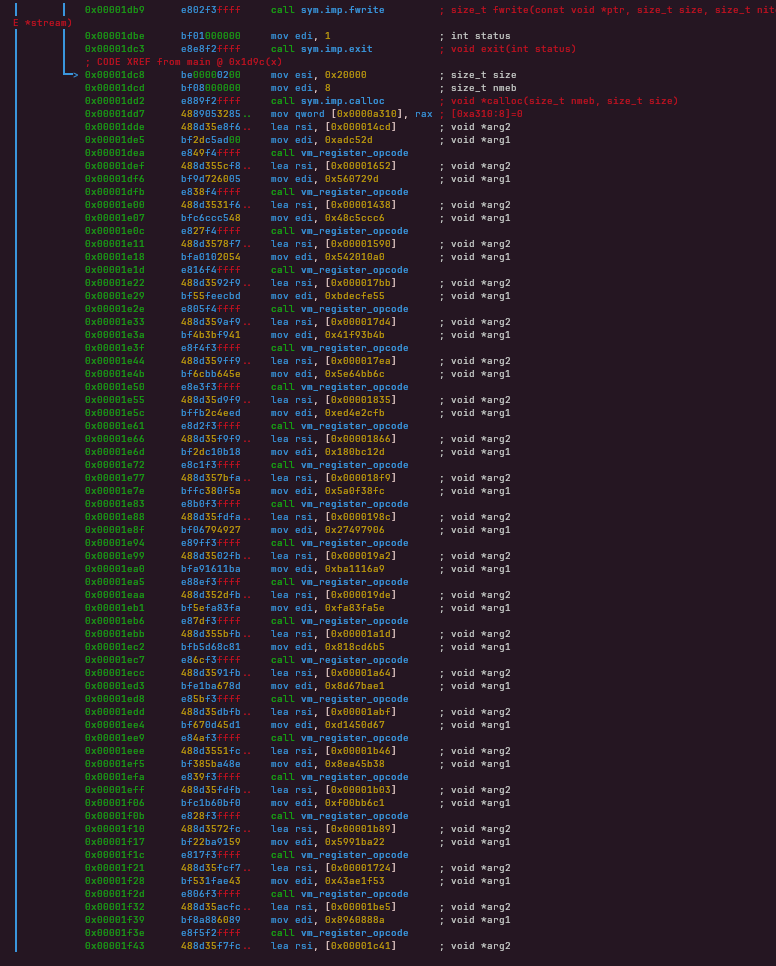

After identifying the VM structure, the next step is manually identifying each opcode handler (would not reccomend)
We backtrack to the first opcode registration point:

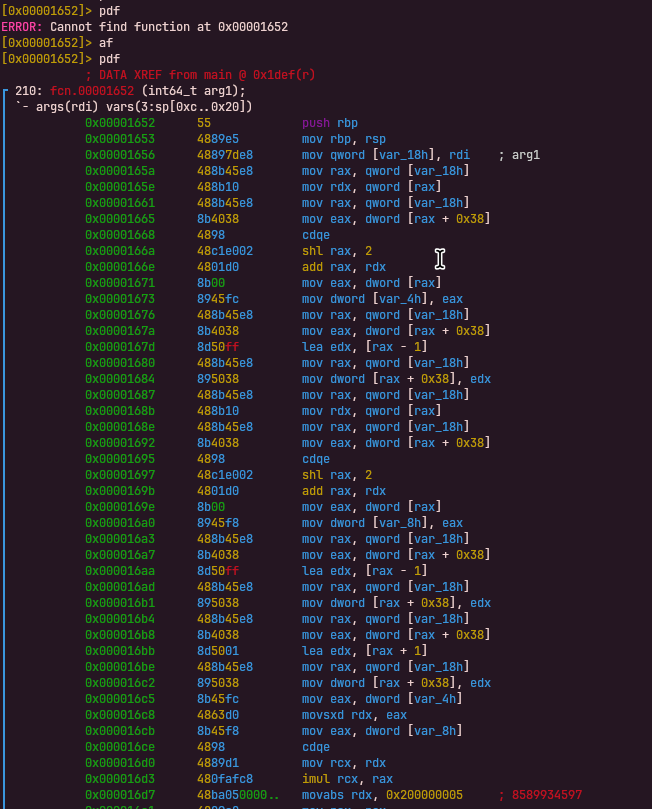

s 0x00001ddeMUL Opcode
This instruction pops two values from the VM stack, multiplies them, applies modulo 0x7fffffff, and pushes the result back onto the stack.

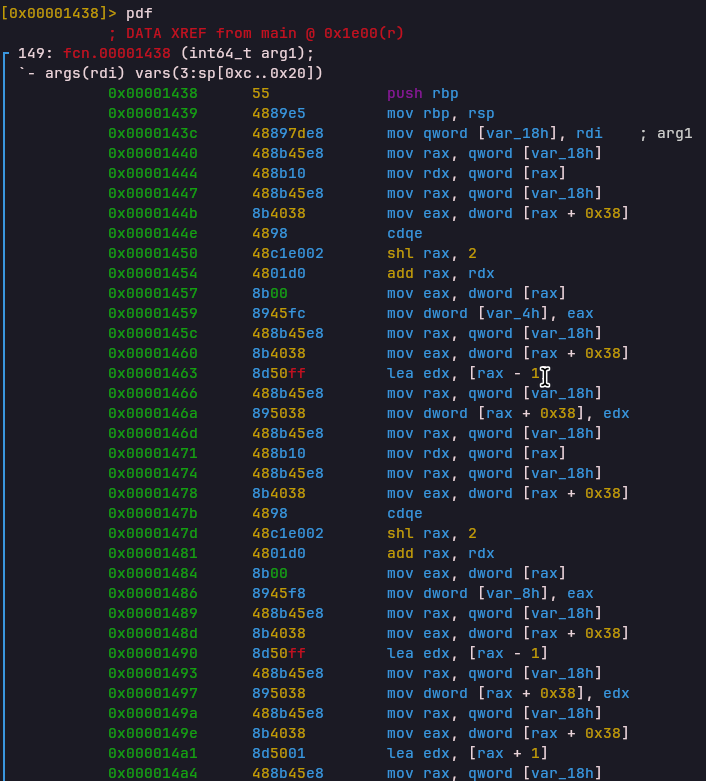

XOR Opcode
Opcode: 0x48c5ccc6
Handler: 0x00001438The XOR instruction pops two values from the stack, performs a bitwise XOR, and pushes the result back. Unlike other arithmetic operations, XOR does not apply modulo.

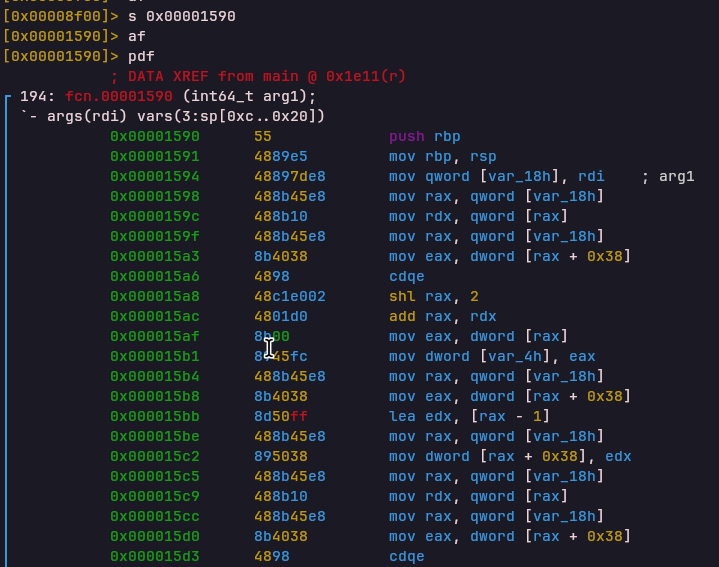

AND Opcode
Opcode: 0x542010a0
Handler: 0x00001590Performs bitwise AND between two stack values and pushes the result.

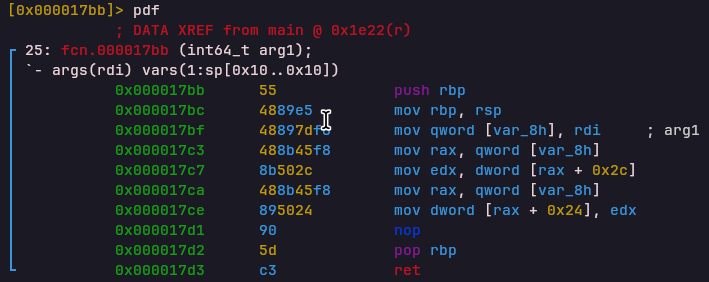

RET Opcode
Opcode: 0xbdecfe55
Handler: 0x000017bbReturns from a VM function by restoring the program counter from the Link Register (LR).

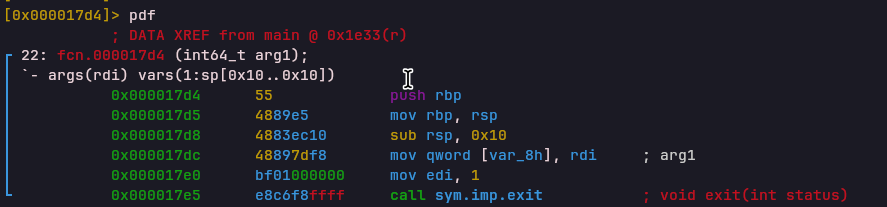

ABORT Opcode
Opcode: 0x41f93b4b
Handler: 0x000017d4Immediately terminates execution by calling exit(1).
Used for invalid execution paths.
PUSH_IMM Opcode
Handler: 0x000017eaPushes a 32-bit immediate value (fetched from ROM) onto the VM stack.

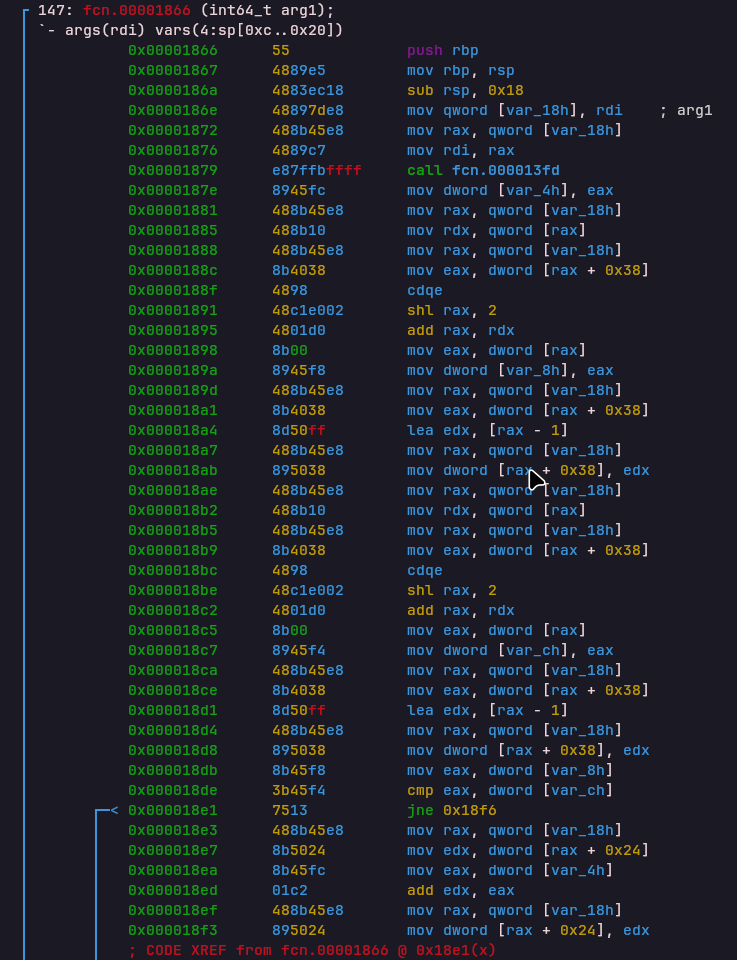

JZ (Jump if Equal)
Opcode: 0x180bc12d
Handler: 0x00001866Pops two values from the stack. If they are equal, the program counter is adjusted using a signed immediate offset.
JNZ (Jump if Not Equal)
Opcode: 0x5a0f38fc
Handler: 0x000018f9Pops two values from the stack. If they are not equal, PC is updated by a signed immediate offset.

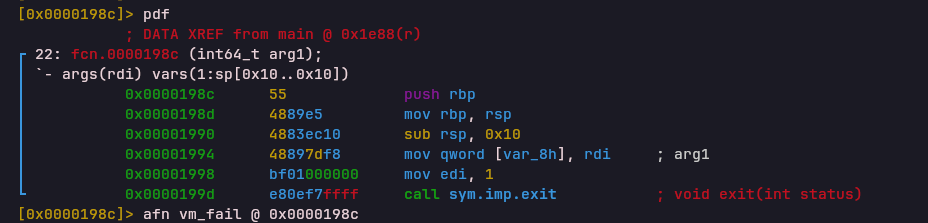

FAIL Opcode
Opcode: 0x27497906
Handler: 0x0000198cAnother hard failure instruction that immediately exits the program.
SET_MEM_PTR Opcode
Opcode: 0xba1116a9
Handler: 0x000019a2Updates the VM memory pointer, used for subsequent memory read/write instructions.
CALL Opcode
Opcode: 0xfa83fa5e
Handler: 0x000019deStores the current PC into the Link Register (LR) and jumps to a new address.

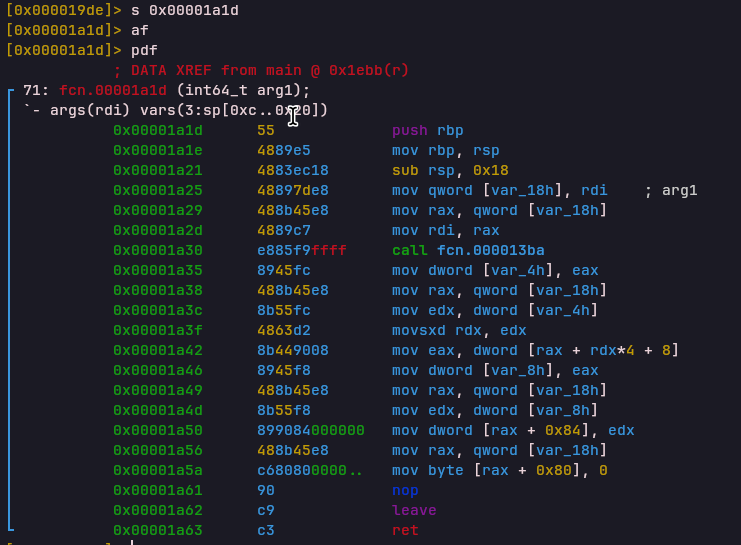

HALT Opcode
Opcode: 0x818cd6b5
Handler: 0x00001a1dSets the exit code and terminates VM execution cleanly.

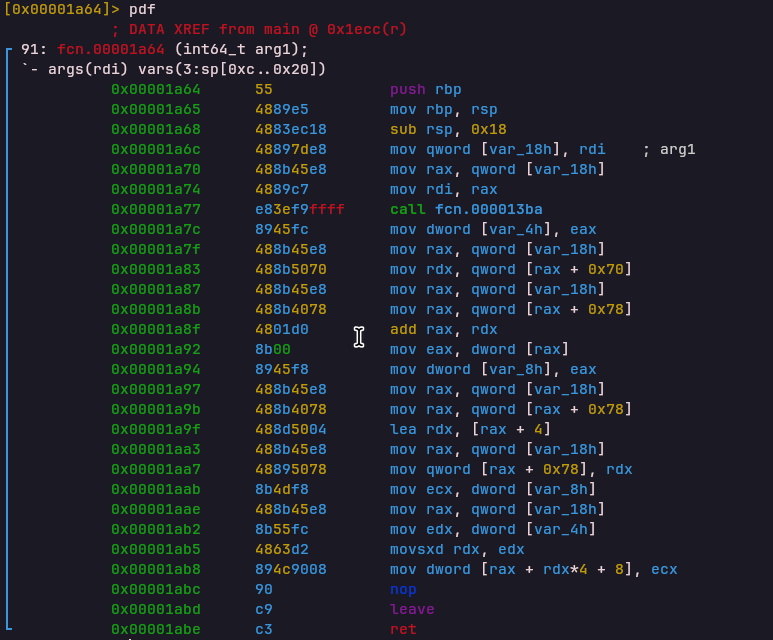

LOAD_REG Opcode
Opcode: 0x8d67bae1
Handler: 0x00001a64Loads a 32-bit value from ROM into a register.
PUTCHAR Opcode
Opcode: 0xd1450d67
Handler: 0x00001abfOutputs a character using putchar() and sets the VM PUT_FLAG.

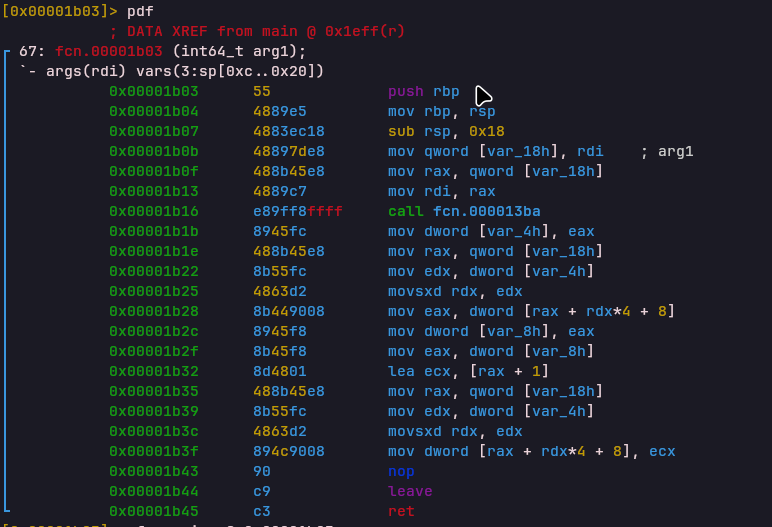

INC / DEC Register Opcodes
INC
Handler: 0x00001b03

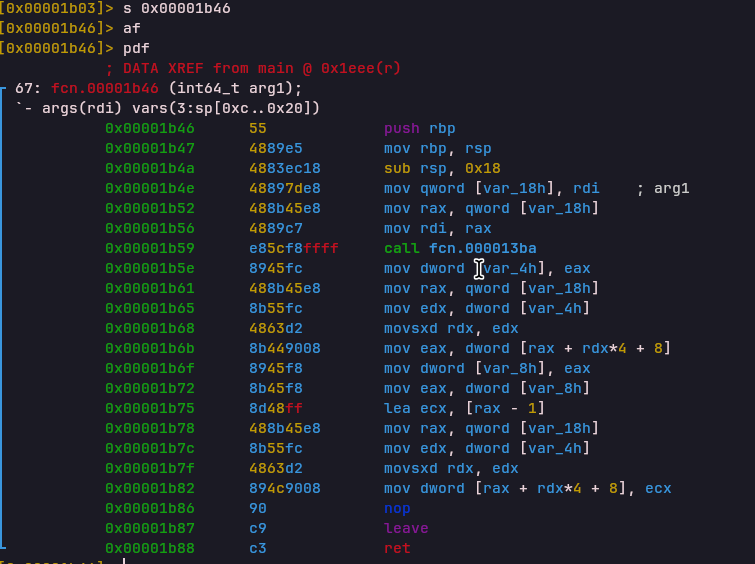

DEC
Handler: 0x00001b46
MOD Opcode
Handler: 0x00001724Performs modulo operation using a register and pushes the result onto the stack.
POP_REG Opcode
Handler: 0x00001be5Pops a value from the stack into a register.

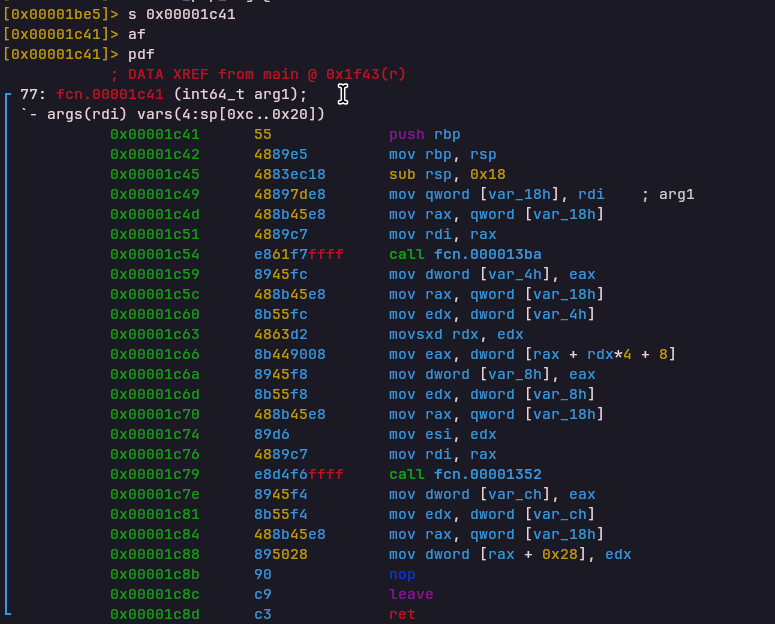

SET_MEM_PTR Opcode
Handler: 0x00001c41Adjusts internal VM memory pointers.

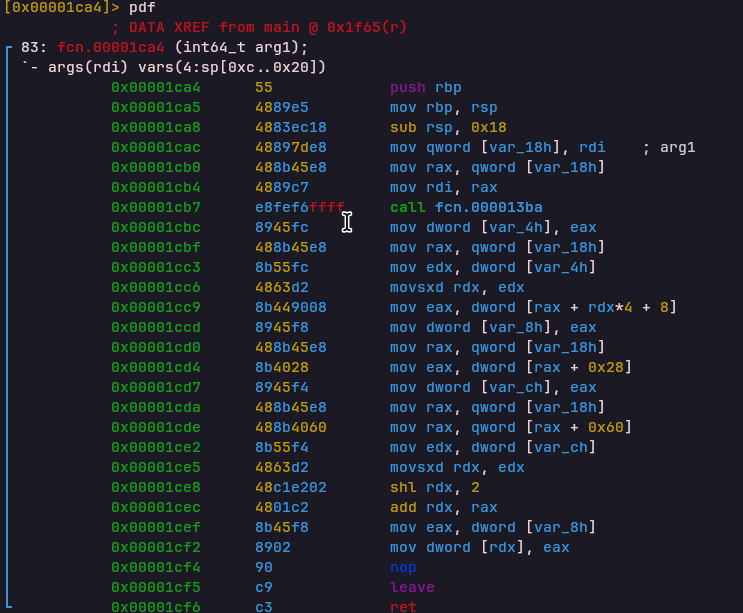

MEMSTORE Opcode
Handler: 0x00001ca4Stores a register value into VM memory at VM_MEM_PTR.

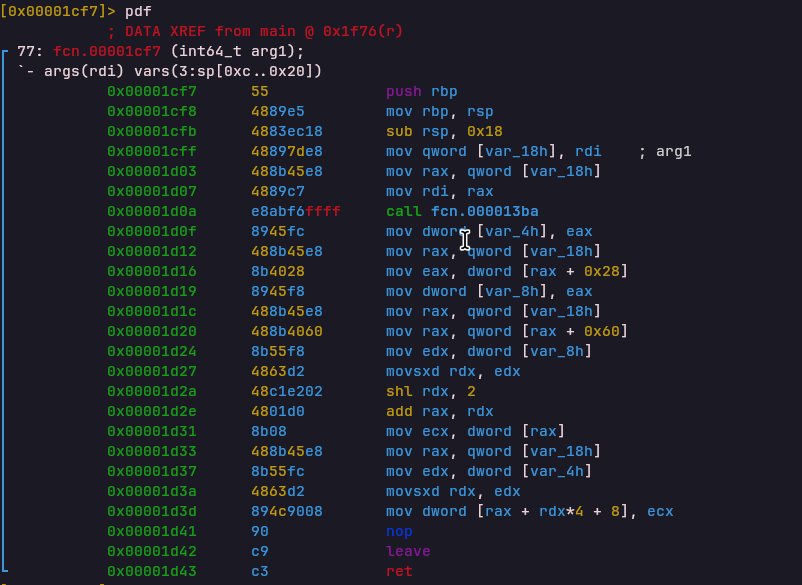

MEMFETCH Opcode
Handler: 0x00001cf7Loads a value from VM memory into a register. MEMFETCH

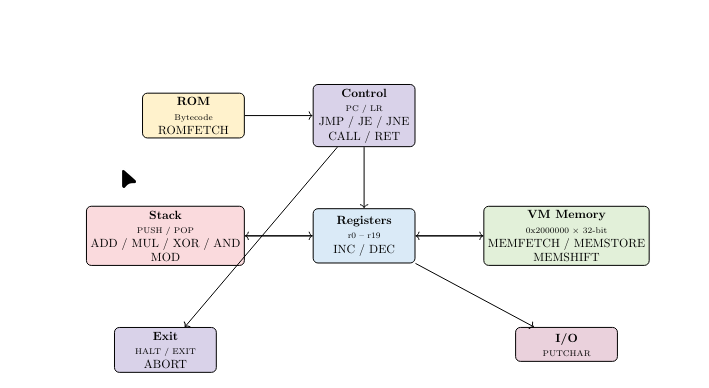

TO put it simply here’s the functioning of the VM
!
After that i came across this article which was a very embedded emulator type VM which has also very much OP codes ; https://miasm.re/blog/2016/09/03/zeusvm_analysis.html
WHy miasm ??
Miasm helps automate this process. After instructions are converted to IR, Miasm can symbolically execute them, meaning it treats inputs as unknown variables and follows all possible program paths automatically.

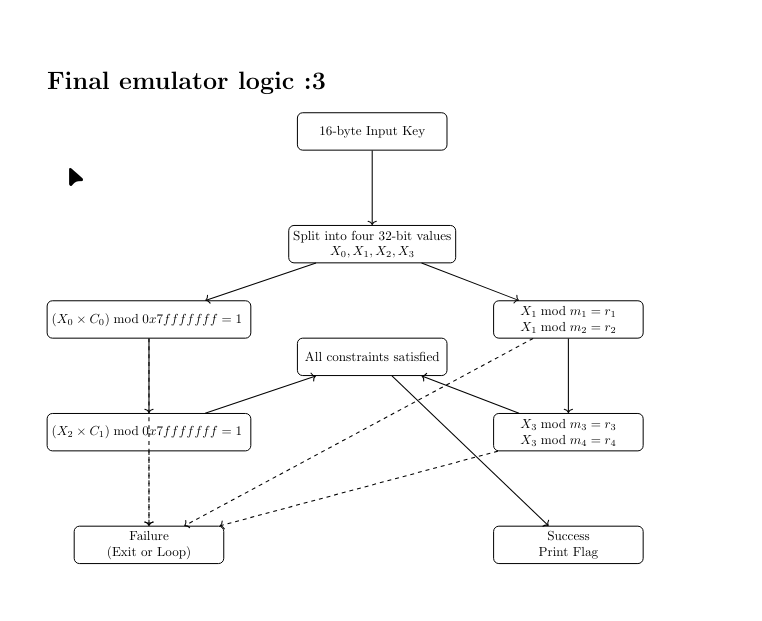

In this challenge, the binary does not directly compare user input. Instead, it runs everything inside a custom VM. Traditional tools struggle here because they do not understand the VM’s instruction set.
By implementing this VM as a custom architecture in Miasm, the VM bytecode can be executed symbolically instead of manually emulated. Miasm automatically tracks relationships between registers, stack values, and memory, and generates constraints on user input. These constraints can then be solved using SMT solvers.

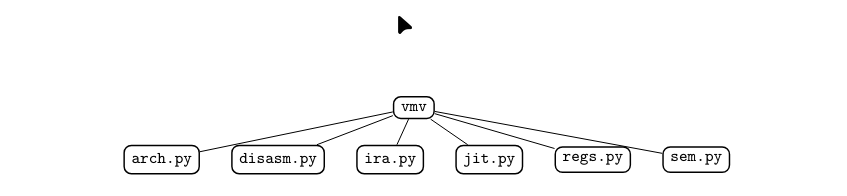

So after reading some guides u need to make some files for misam , which like in the diagram below
the regs.py file is used to define the VM registers, arch.py ties the architecture together and describes basic properties like the program counter, and sem.py defines the actual semantics of each VM instruction
I first needed the bytecode that the VM actually executes, because the main binary never runs it directly on the CPU. The program decodes some Base64 data at runtime and then passes the decoded result to the VM as its instruction stream. Instead of trying to analyze everything at once, I focused on grabbing this decoded data and saving it as a raw binary file. This became the input for Miasm. For the later VM layers, the VM itself loads another bytecode buffer from a ROM-like area in its memory, so I reused those unpacked buffers as well.
Once I had the custom VM architecture wired up in Miasm, the next step was actually getting a disassembler working for the bytecode. I am not a Miasm wizard, so I did the simple thing: I read through the original writeup and kept Miasm’s own blog open as a reference, especially their “Playing with dynamic symbolic execution” article, just to understand how they build CFGs and IR and then simplify them: https://miasm.re/blog/2017/10/05/playing_with_dynamic_symbolic_execution.html#enhancing-coverage-breaking-a-crackme Using that as a guide, I wrote a small Python script that feeds the VM bytecode into Miasm’s Machine(“vmv”), walks over all the basic blocks, looks for simple patterns like PUSH_REG; PUSH_IMM; JE to recover opcode values, and then saves out the control flow and simplified IR as .dot graphs. It is basically a hacked-together disassembler pass that does just enough for this challenge: discover opcodes for each nesting level, teach Miasm about them, then spit out IR I can actually reason about instead of staring at raw 32 bit words.
from collections import defaultdict
import struct
import subprocess
from miasm.analysis.machine import Machine
from miasm.analysis.simplifier import (
IRCFGSimplifierCommon,
IRCFGSimplifierSSA,
)
from miasm.core.locationdb import LocationDB
from miasm.core.utils import ExprInt
from miasm.arch.vmv.regs import *
from miasm.arch.vmv.arch import *
import miasm.arch.vmv.arch as arch_vmv
#
# Dispatcher offsets -> semantic opcode mapping
# These offsets are stable across VM layers.
#
vm_handler_map = {
0xcb8: ("EXIT_REG", reg_idx),
0xbcc: ("DEC", reg_idx),
0xd70: ("RET",),
0x6e8: ("MEMFETCH", reg_idx),
0xcd8: ("CALL", imm32),
0x358: ("PUTCHAR_REG", reg_idx),
0x444: ("JMP", imm32),
0x980: ("XOR",),
0x8fc: ("MUL",),
0x770: ("AND",),
0xb68: ("INC", reg_idx),
0x4ac: ("JE", imm32),
0x67c: ("MEMSTORE", reg_idx),
0x878: ("ADD",),
0x380: ("PUSH_IMM", imm32),
0x3f0: ("ROMFETCH", reg_idx),
0x3b0: ("PUSH_REG", reg_idx),
0x594: ("JNE", imm32),
0xa04: ("PUTCHAR_IMM", putchar_imm32),
0xa44: ("EXIT_IMM", imm32),
0xa54: ("MEMSHIFT_IMM", imm32),
0xaa0: ("MEMSHIFT_REG", reg_idx),
0xafc: ("POP", reg_idx),
0xc30: ("MOD", reg_idx),
}
def dump_cfg(cfg, path):
"""Dump CFG/IR to .dot and render it using graphviz."""
with open(path, "w") as f:
f.write(cfg.dot())
subprocess.call([
"dot", "-Tpng",
path,
"-o", path.replace(".dot", ".png"),
])
#
# Opcode discovery logic
#
def vm_opcode_probe(mdis, block, _):
"""Inspect VM basic blocks for dispatcher patterns."""
# Dispatcher entry:
# PUSH_REG
# PUSH_IMM <opcode>
# JE <handler>
#
lines = block.lines
if (
len(lines) == 3
and lines[0].name == "PUSH_REG"
and lines[1].name == "PUSH_IMM"
and lines[2].name == "JE"
):
imm = lines[1].args[0]
dst = lines[2].args[0]
if isinstance(imm, ExprInt):
opcode = int(imm.arg)
handler = mdis.loc_db.get_location_offset(dst.loc_key)
vm_opcodes[opcode] = handler
#
# VM layer init block (xor constants)
#
if mdis.loc_db.get_location_offset(block.loc_key) == 0xe8:
arch_vmv.putchar_xorlist.append(
int(lines[0].args[0]) & 0xff
)
arch_vmv.reg_xorlist.append(
int(lines[2].args[0]) & 0xff
)
def register_vm_opcodes(opcodes, level):
"""Register decoded opcode values into Miasm."""
print(f"\n[vm{level}] registering opcodes")
for opcode, handler_off in opcodes.items():
name_def = vm_handler_map[handler_off]
mnemonic = name_def[0]
operands = name_def[1:] if len(name_def) > 1 else []
print(f" {hex(opcode)} -> {mnemonic}")
if operands:
addop(mnemonic, [bs32(opcode), operands[0]])
else:
addop(mnemonic, [bs32(opcode)])
#
# Bytecode loader
#
def load_vm_bytecodes():
"""Load initial and nested VM bytecode blobs."""
blobs = []
with open("vmv_bytecode.bin", "rb") as f:
blobs.append(f.read())
with open("vmv_nested_bytecode.bin", "rb") as f:
while True:
hdr = f.read(4)
if not hdr:
break
count = struct.unpack("<I", hdr)[0]
blobs.append(f.read(count * 4))
return blobs
#
# Main analysis loop
#
machine = Machine("vmv")
bytecodes = load_vm_bytecodes()
print(f"[+] detected {len(bytecodes)} VM layers")
results = []
entry = 0x0
for level, bc in enumerate(bytecodes, start=1):
print(f"[vm{level}] bytecode size: {len(bc) // 4:#x}")
vm_opcodes = defaultdict(int)
loc_db = LocationDB()
mdis = machine.dis_engine(bc, loc_db=loc_db)
mdis.dis_block_callback = vm_opcode_probe
asmcfg = mdis.dis_multiblock(entry)
results.append((loc_db, asmcfg))
dump_cfg(
asmcfg,
f"output/vmv_asmcfg{level}.dot"
)
arch_vmv.nest_level += 1
if len(vm_opcodes) == 24:
register_vm_opcodes(vm_opcodes, level)
#
# IR lifting (final VM layer)
#
nl = 4
loc_db, asmcfg = results[nl]
ira = machine.ira(loc_db)

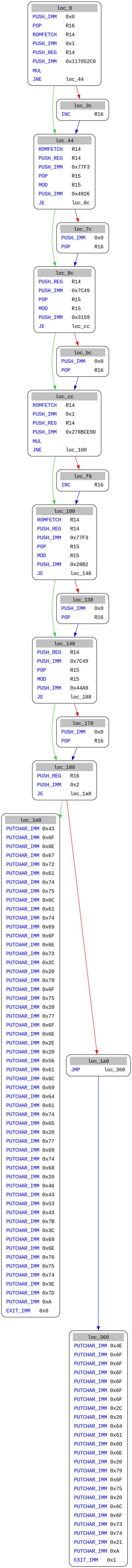

ircfg = ira.new_ircfg_from_asmcfg(asmcfg)
dump_cfg(ircfg, f"output/vmv_ircfg{nl + 1}.dot")
entry_loc = loc_db.get_offset_location(entry)
simp = IRCFGSimplifierCommon(ira)
simp.simplify(ircfg, entry_loc)
dump_cfg(ircfg, f"output/vmv_ircfg_simp_common{nl + 1}.dot")
simp = IRCFGSimplifierSSA(ira)
simp.simplify(ircfg, entry_loc)
dump_cfg(ircfg, f"output/vmv_ircfg_simp_ssa{nl + 1}.dot")
At some point while trying to hook my VM into Miasm, I ran into this error saying that miasm.arch.vmv.jit did not contain something called jitter_vmv. After some digging, I realized this wasn’t actually a VM bug but a Miasm integration issue. When Miasm loads a new architecture through machine.py, it assumes that a JIT (Just-In-Time execution) backend exists and tries to import it automatically. In my case, vmv/jit.py turned out to be completely empty, so there was nothing named jitter_vmv to import. Since my disassembly and analysis pipeline never used the JIT at all, the simplest fix was to remove the JIT-related import lines for vmv inside machine.py. This effectively told Miasm that the vmv architecture does not support JIT execution, which was totally fine for static disassembly and IR lifting.
After fixing the JIT issue, Miasm failed again, this time complaining about a missing LifterModelCallVmv class in vmv/ira.py. This was another case of Miasm expecting a conventionally named class without checking whether it actually existed. I opened vmv/ira.py and found that it instead defined classes named ir_a_vmv_base and ir_a_vmv. Based on the existing Miasm architectures and how the lifter is usually named, it was clear that ir_a_vmv was the correct lifter to use. To fix this, I updated the vmv branch in machine.py to import ir_a_vmv instead of LifterModelCallVmv. Once this change was made, Miasm could successfully lift VM instructions into IR without looking for non-existent classes

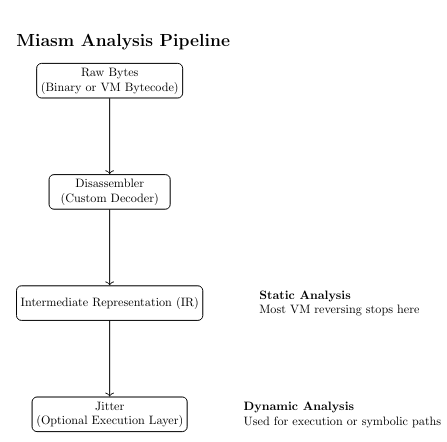

With my knowledge , ill try to summarise how jitter the execution layer works :(
Miasm has a component called Jitter, which is used to execute instructions after they have been translated into Miasm’s intermediate representation (IR). You can think of Jitter as a simple emulator that understands IR instead of raw machine code. It keeps track of things like registers, memory, and the current instruction pointer, and then steps through instructions one by one.

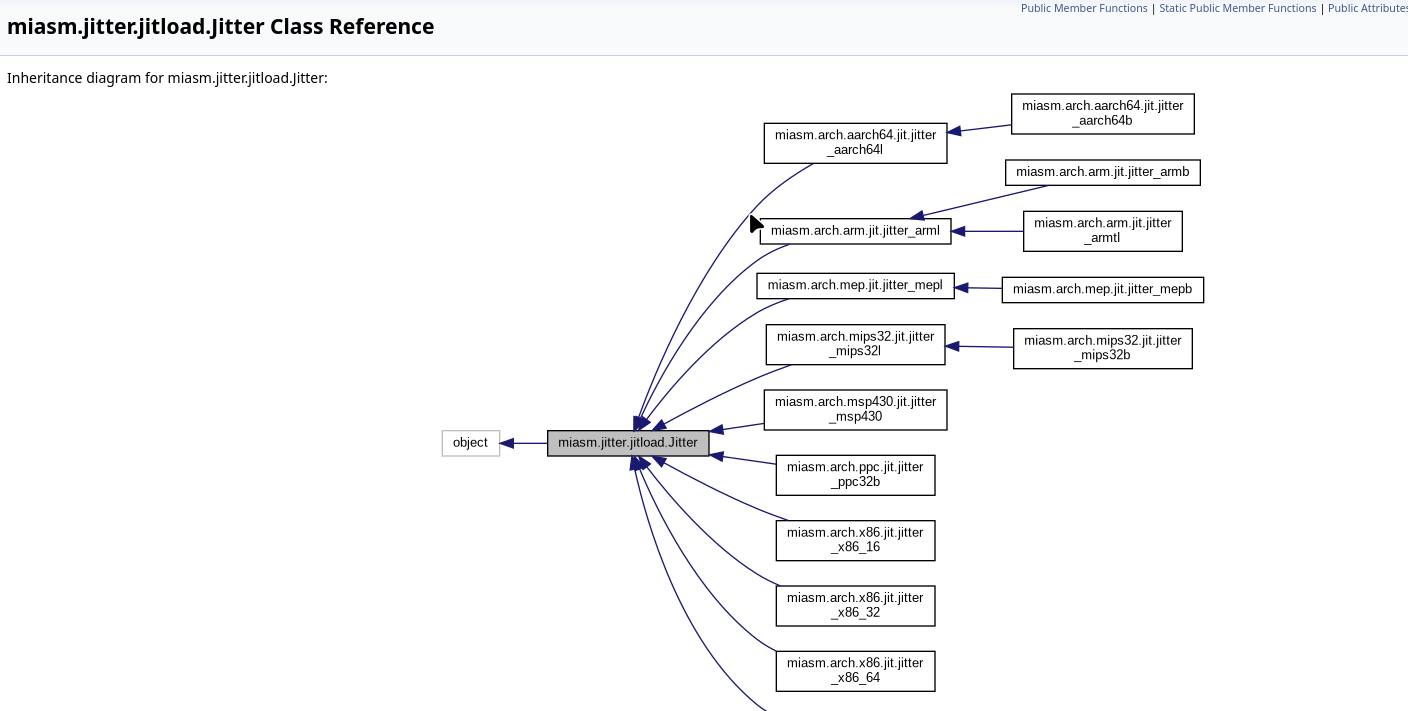

At the core of this system is a generic Jitter class, which provides common execution logic that works the same for every architecture. On top of that, Miasm defines architecture-specific subclasses such as jitter_x86_64, jitter_arm, or jitter_mips32. Each of these subclasses explains how instructions for that particular CPU should behave at runtime. This is why Miasm’s documentation shows a large inheritance diagram: many different architectures all extend the same base Jitter class.
Jitter is also closely tied to symbolic execution. Instead of running instructions with real concrete values, Miasm can execute them symbolically, meaning registers and memory can hold expressions rather than actual numbers. As Jitter steps through instructions, it updates these symbolic expressions and builds constraints that describe how program inputs affect the program state. This is useful for exploring multiple execution paths, understanding key checks, or reasoning about conditions without needing a specific input. In short, symbolic execution uses Jitter as its execution engine, but replaces concrete values with symbolic ones.

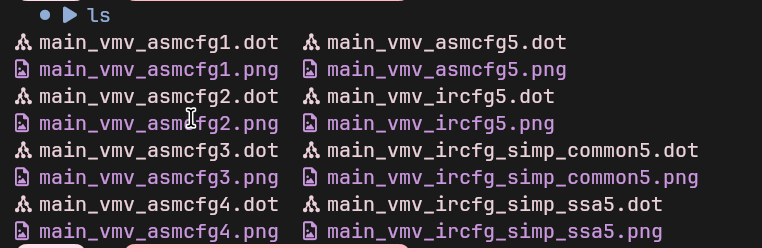

Each layer produced an assembly-level CFG (_asmcfg.png), which shows the decoded VM instructions and their control flow, and for the final VM layer an IR-level CFG (_ircfg.png) was also generated
Ng
After setting up the custom disassembler, I began analyzing the generated assembly-level control flow graphs (CFGs) for each VM layer. These graphs show the decoded VM instructions and how control flows within each virtual machine. Since the challenge uses nested virtualization, examining these CFGs layer by layer helps understand how complexity is gradually peeled away until the real logic is exposed.
The first VM layer is the largest and most complex. It is dominated by dispatcher logic: instruction fetch loops, register movement, memory initialization, and indirect jumps. At this stage, the VM mainly focuses on setting up the execution environment and preparing the next bytecode buffer. There are no meaningful input-dependent checks here, only infrastructure code required to emulate the VM.
The second VM layer closely resembles the first. While some constants and register roles differ due to re-encoding, the overall structure remains the same: a large dispatcher loop with instruction handlers branching from it.
By the third VM layer, the CFG begins to shrink slightly. While dispatcher logic is still clearly visible, there are fewer blocks and less overall noise.
Although a dispatcher is still present, the CFG is noticeably smaller and more structured. Many repetitive VM bookkeeping blocks disappear tho
The CFG is much smaller and no longer dominated by VM dispatch infrastructure. Instead, it consists of relatively straight-line code with arithmetic operations and branches based on computed values.
The VM abstraction is very less honestly and we can see the register data’s etc .

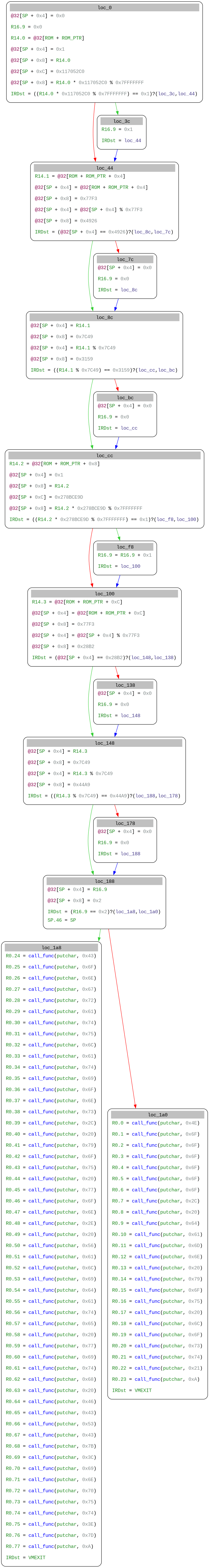

From the SSA graph, it becomes clear that the input key is read from the VM ROM buffer in four 32-bit chunks. These correspond to the 16-byte input split as input[0:4], input[4:8], input[8:12], and input[12:16]. Each chunk is processed independently through a sequence of arithmetic checks. The first and third chunks are multiplied by fixed constants and reduced modulo 0x7fffffff, with the result compared against the value 1. This directly translates into modular inverse equations. The second and fourth chunks are validated using two different modulo comparisons each, forming classic Chinese Remainder Theorem (CRT) constraints.
Only if all constraints succeed does execution reach the final block, which consists of a series of putchar calls that print the flag one character at a time.

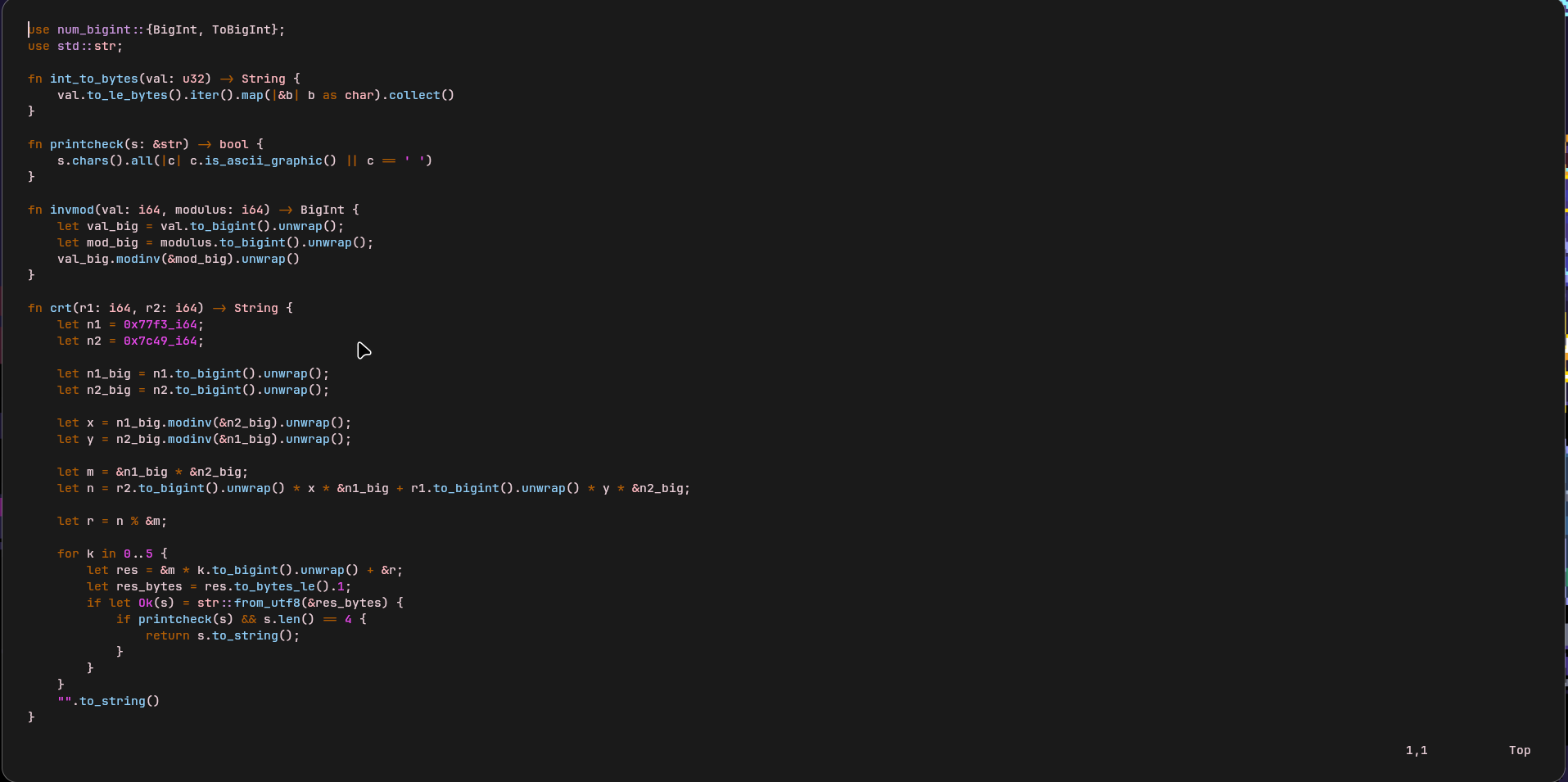

So i made a smol keygen
References
-
Miasm official blog and documentation https://miasm.re/blog/
-
Miasm v0.1.0 release notes (IRCFG, SSA, symbolic execution improvements) https://miasm.re/blog/2018/12/20/release_v0_1_0.html
-
Tigress-based protection and virtualization examples https://github.com/JonathanSalwan/Tigress_protection
-
Dynamic Symbolic Execution with Miasm (crash course + crackme coverage) https://miasm.re/blog/2017/10/05/playing_with_dynamic_symbolic_execution.html
-
Data flow analysis and dependency graphs in Miasm https://miasm.re/blog/2017/02/03/data_flow_analysis_depgraph.html
-
Nanomite-protected binary analysis using Miasm symbolic execution https://doar-e.github.io/blog/2014/10/11/taiming-a-wild-nanomite-protected-mips-binary-with-symbolic-execution-no-such-crackme/
-
Deobfuscation of OLLVM-protected programs (Quarkslab) https://blog.quarkslab.com/deobfuscation-recovering-an-ollvm-protected-program.html
